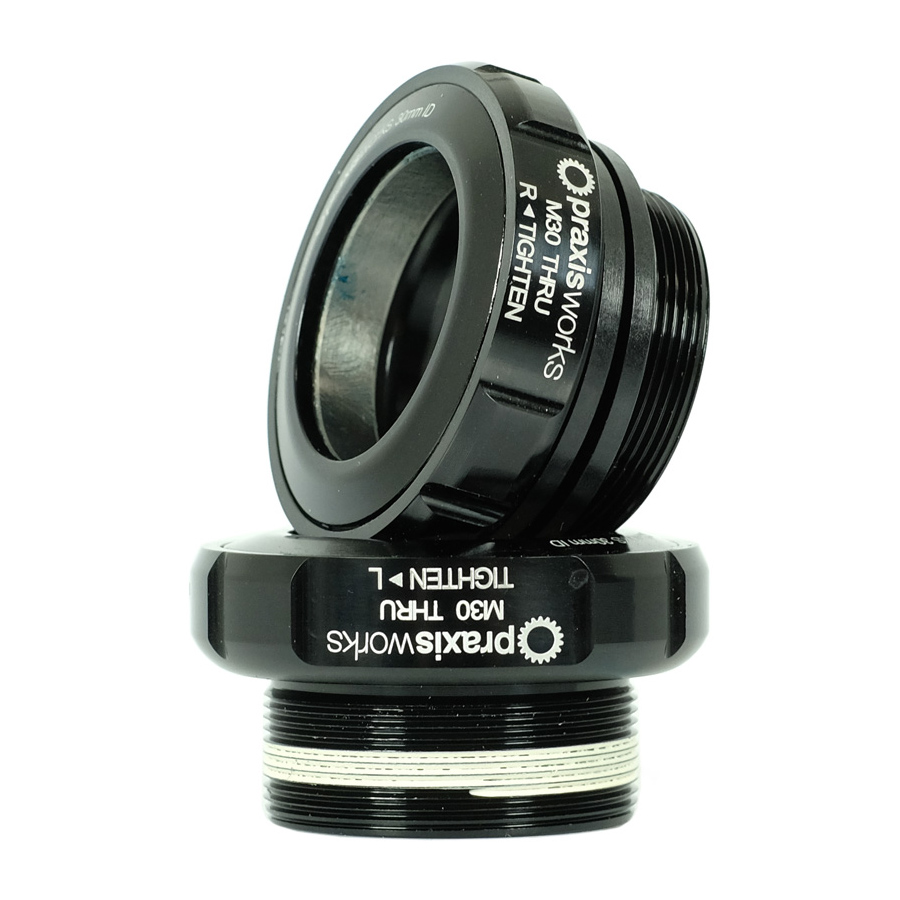

Praxis M30 Thru BSA Bottom Bracket

The Praxis M30 thru bottom bracket is designed to be a proper bottom bracket for installing the Praxis Lyft Carbon Crank. It will also work with Race Face “CINCH” or Rotor “REX” MTB cranks into 73mm BB30/PF30 mountain frames. The Praxis patent pending design keeps the Enduro 6806 cartridge bearings outboard of the frame for greater rigidity and free of frame/c-clip tolerance issues that other systems deal with. Simply press in the longer non-drive-cup, then thread the shorter Drive cup into it. As the drive cup threads in, the trademark Collet system expands to a precise limit evenly dispersing pressure for a super tight fit. With both cups connected and the collet set exactly to spec, there is no chance the bearings can come out of alignment or wiggle/walk out of the frame. This design also uses a compressible o-ring on the non-drive side cup to compensate for frame shell width discrepancies.

Features

• For Praxis Lyft, 73mm 30mm Race Face “CINCH” or 30mm Rotor “REX1” MTB cranks only
• 30mm Drive & 30mm NonDrive | 6806 Steel bearings
• For install in 73mm MTB BB30 and PF30 MTB, BSA or BB92 frames
• Forged & machined heat-treated AL Cups
• The Praxis M30 BB tools are needed for installation. The BB92 guide is required for BB92
• MTB Guides -ISCG05 & ST Mounted Good, ISCG03 Not Good
• Please note: has a 30mm non-driveside inner diameter
