OneUp Components Rear Hub - 12x148mm
RRP
Bundle Deals
Code: 1C0741

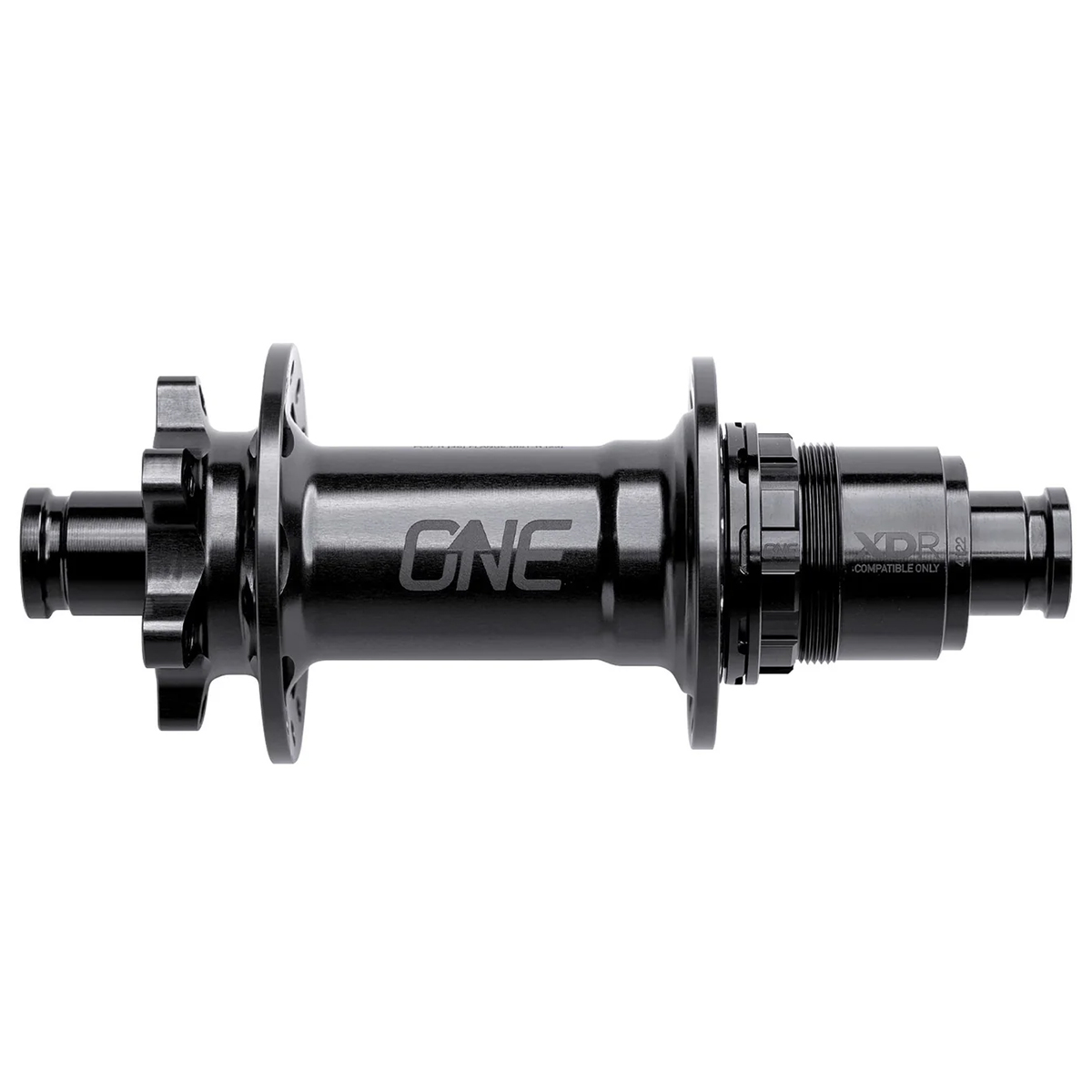

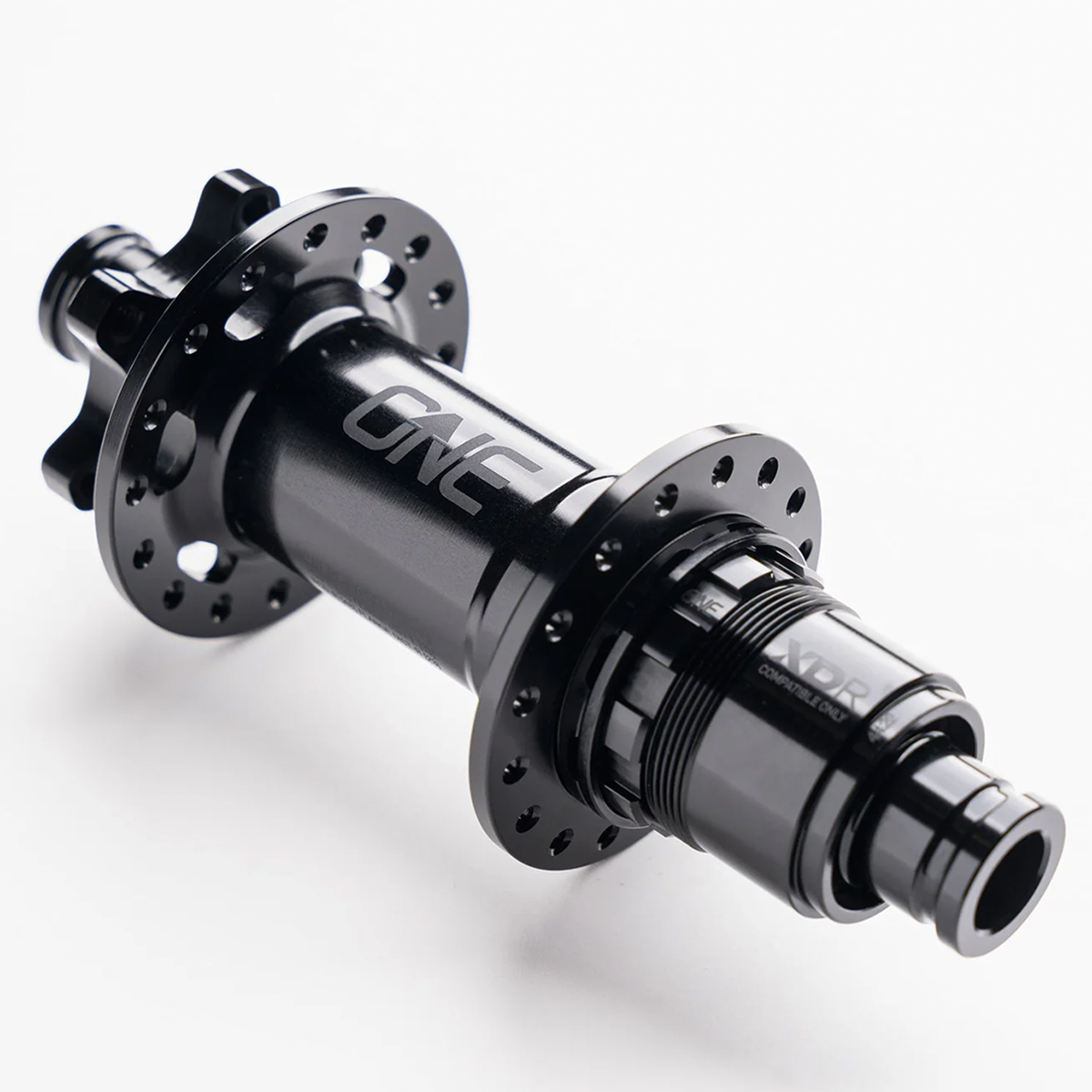

OneUp Components Rear Hub - 12x148mm (Supplied without freehub)
This is the rear hub OneUp want on there bikes. A lightweight, durable, ratchet drive hub with high-quality bearings and seals to give you the best combination of performance, durability and price. This is the new benchmark for a no-nonsense rear hub.
Lightweight.
OneUp's simple design has fewer parts, that reduces weight and improves reliability. The fully machined 7075 aluminium body is super light and strong.
Durable Design.
Premium Enduro™ ABEC 5 cartridge bearings are spaced as wide as possible to reduce wear, reduce side-loading and increase bearing life.
Good Engagement.
OneUp chose to develop a 44T ratchet to strike the best balance between performance and value with improved reliability.
Specification
- Hub Spacing: Boost (12mm x 148mm)
- Hole Count: 28 and 32
- Engagement: 44 points, 8.2 degrees
- Weight: 220g
- Material: 7075 T6 Aluminium
- Freehub options: XDr, Microspline (MS), Hyperglide (HG)
- Spokes: J-Bend
- Rear Hub Dimensions: PCD-L: 52, Flange Dist-L: 38. PCD-R: 48, Flange Dist-R: 23
- End Caps: Tool free installation
- Bearings: Enduro™ 6902 (rear), Enduro™ 6802 (freehub)
- Seal: Enduro™ Silicone Freewheel Seal
- Grease: Dumonde™ Pro-X Grease (included with freehub)
What's in the Box
- 1x Rear hub (assembled)
- 1x Grease Packet (Dumonde™ Tech Pro X Freehub Grease)
- 2x 44T Ratchets
- 1x Ratchet Spring
- 1x Non-drive side end cap
- 1x Drive side dust cover (disposable)
- Note: Rear hubs are sold without a Freehub. This allows us to offer a lower cost and better inventory.
Things you Should Know
- Machined 7075 aluminium body uses an integrated drive ring
- Hub flange spacing improves strength and stiffness of wheels built on our hubs
- Light enough for XC racing and strong enough for Enduro abuse
- Ratchets, bearings, seals, freehubs and small parts available direct from OneUp
