Code:: DHX2-230

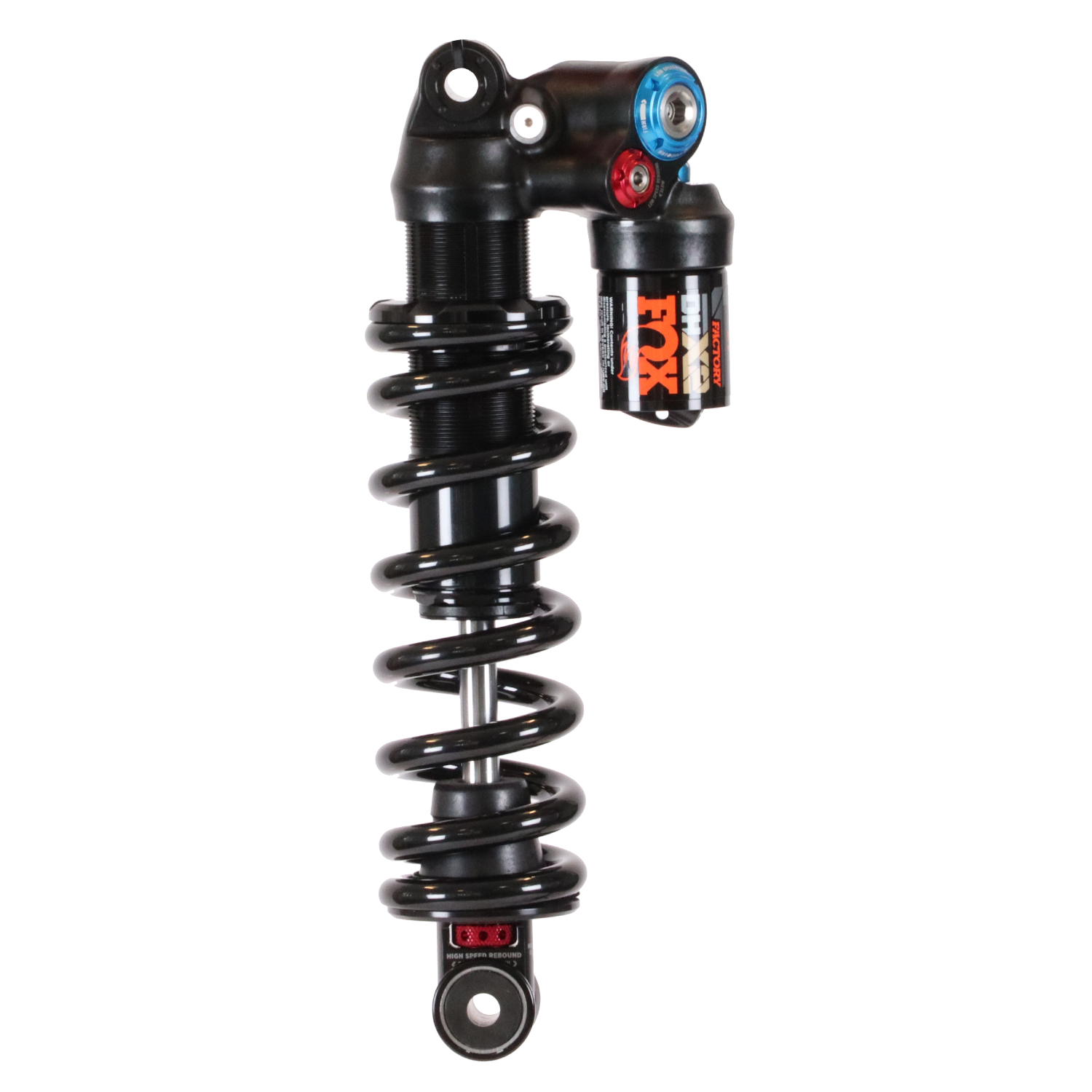

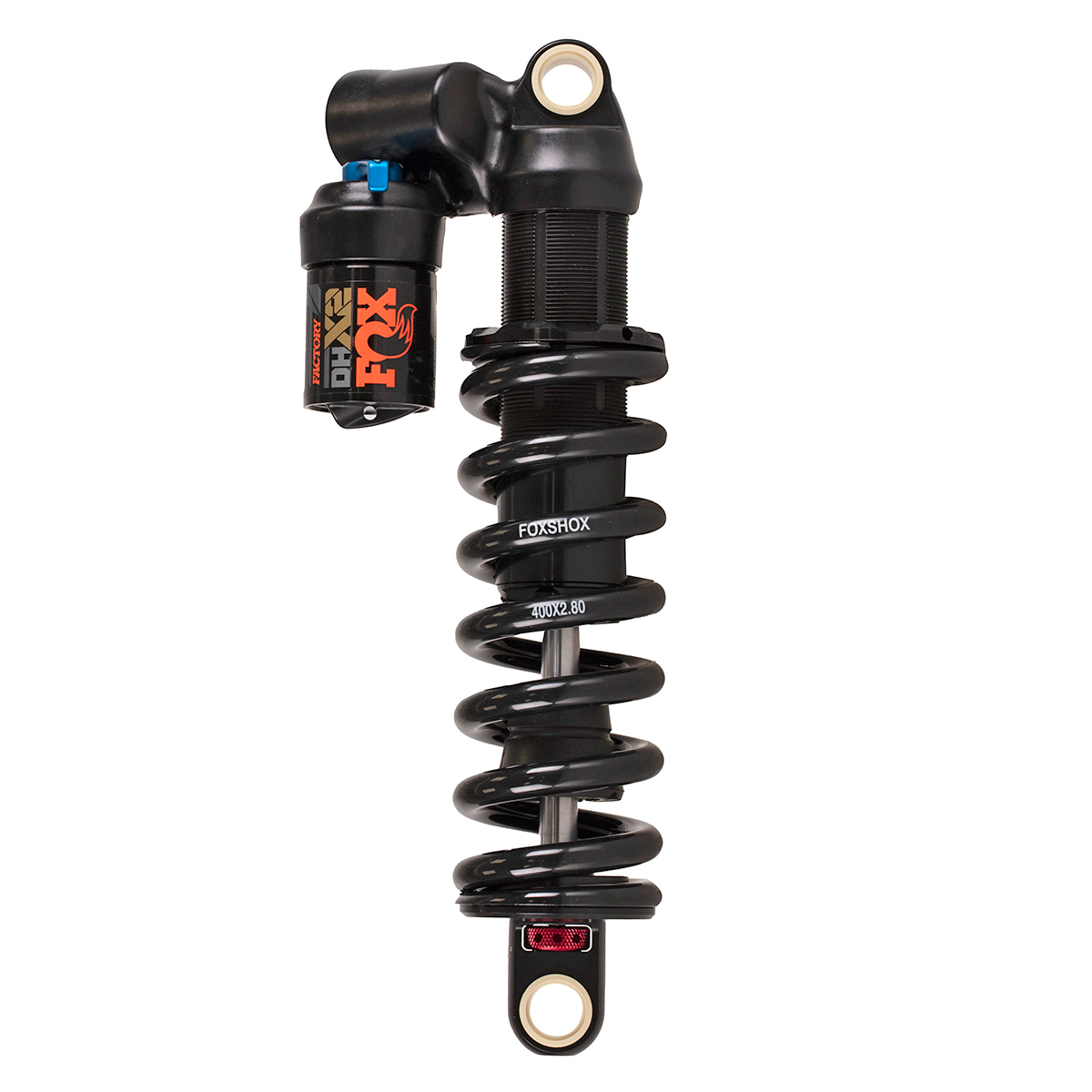

Fox DHX2 Factory Coil Rear Shock - 230 Eye-To-Eye

Nothing sticks to the ground quite like a coil shock. The DHX2 takes that sensation and buttresses it with sophisticated progressive damping, a massive overall tuning range, and super low-friction internals in order to capitalize on the full race-spec magic carpet experience.

Features

New chassis & damper.
Improved bearing ratio for metric sizes.
New detents on spring collar to prevent loosening under light preload conditions.
New high-flow main piston.
New MCU bumper for increased end stroke progression and bottom out control.
Matching 8-click HSC and HSR adjustment on Grip2 forks and X2 shocks.
Reduced friction.
Improved high-speed rebound tunability via addition of VVC (Variable Valve Control).
Increased control and decreased harshness via linear damping.
Steel outer body and finned inner body for improved structural rigidity and reduced hysteresis.
Ultra-low friction, highly durable damper shaft finish.
Independent firm mode circuit – firmer lockout than previous DHX2.
Reduced length reservoir for better fit on more frames.

Specification

Eye To Eye / Stroke: 230x60 or 230x65
Spring: 400lb x 2.80 or 450lb x 2.80
Rebound Tune: HSR
Compression: HSC
Shaft Eyelet: 30x8
Body Eyelet: 30x8
