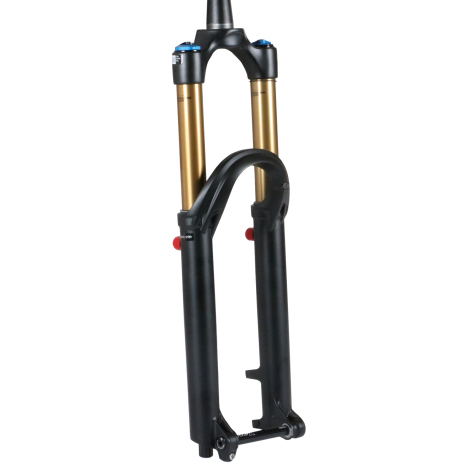

Fox 38 Float Factory GRIP2 E-Optimised Boost MTB Forks - 29"
RRP
Code: 910-35-76
Fox 38 Float Factory GRIP2 E-Optimised Boost MTB Forks - 29"
All the revolutionary features of the brand-new 36 packaged in a super-stout chassis engineered specifically for modern hard-hitting, long travel enduro-style riding. The 38 is hungry to devour all you can throw at it and ask for more.
Features
- All-NEW for 38, steerer tube design incorporates elliptical shaping in taper zone, further maximizing stiffness to weight ratio.
- Lower leg bleeders.
- Air/oil channels.
- Updated GRIP2 damper now with dual VVC (Variable Valve Control) on HSC and HSR circuits.
- Matching 8-click HSC and HSR adjustment on Grip2 forks and X2 shocks.
- Unique design maximizes stiffness to weight and offers improved head tube clearance via radical NEW arch shape.
- 31% stiffer transverse shear, 9% stiffer fore/aft and 20% torsionally stiffer than 36.
- Updated EVOL air spring.
- 58mm crown diameter to match modern frame shape profiles.
- Optional mudguard with sturdy and seamless 4-point direct-mount attachment protects upper tubes and dust wipers from dirt and debris.
FIT GRIP2
The FIT GRIP2 damper is considered a high-end version of the GRIP damper, which was well received by the market. The GRIP2 damper is the new flagship model that features High and low speed rebound adjusters and high and low speed compression to help fine tune for ultimate grip.
NEW Crown
Lighter by 20 grams, while increasing steerer-tube overlap at the CSU, the new crown design improves durability while Fox's engineering maintains stiffness and drops weight.
Axle
Kabolt, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.
Float EVOL
Optimizes small bump sensitivity by increasing negative air spring volume. Its linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.
No Decals
Supplied without decals. The is the perfect opportunity to get some custom decals to match your bike!
E-Optimized
E-Optimized forks get a custom fox tuned damper and a more progressive air spring, maximising traction for the heavier weight of an ebike. The CSU (crown, steerer and upper tube) assemblies is also thicker to boost their stiffness and strength. These forks will work on a normal bike just the same.
Specification
- Wheel Size: 29"
- Travel: 170mm
- Offset: 44mm
- Damper: FIT GRIP2
- Adjustment: HSC, LSC, HSR, LSR
- Steertube: 1.5 Tapered
- Axle Options: Boost 15x110
- Uppertube Finish: Kashima Coated
