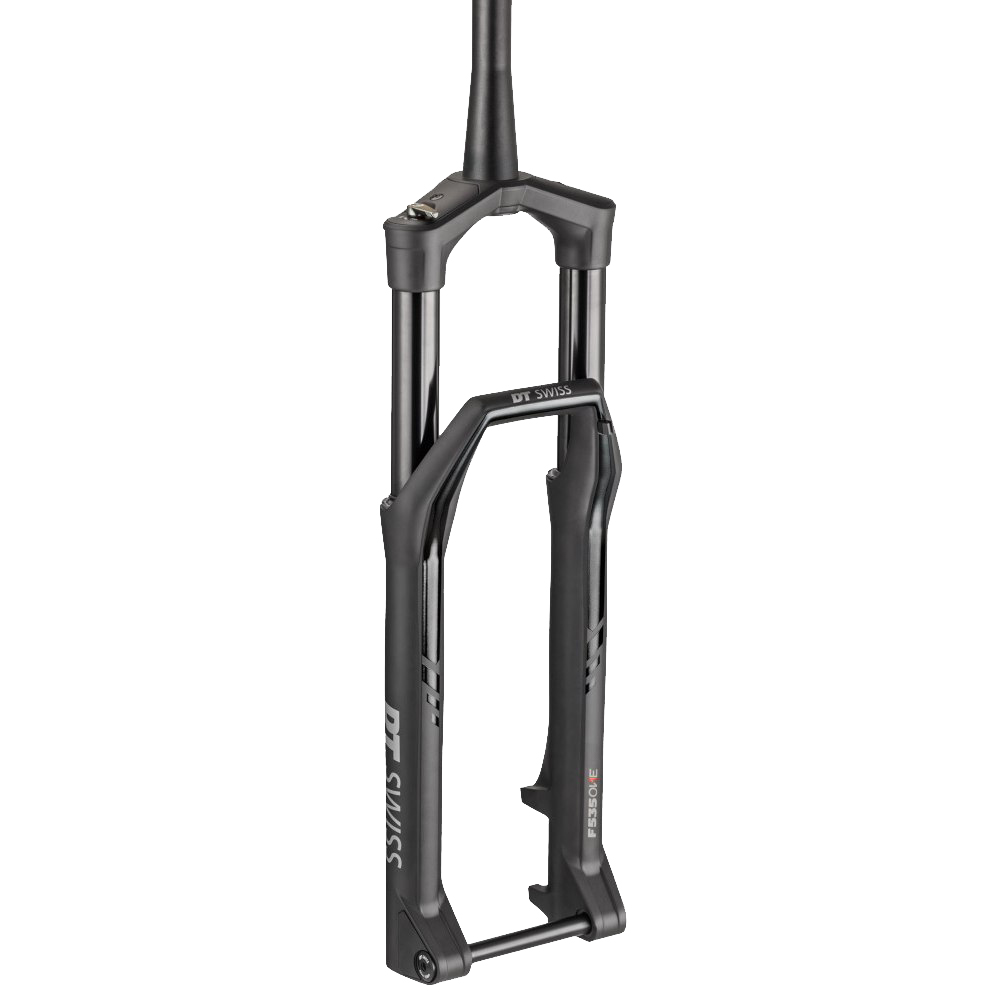

DT Swiss F 535 One Boost MTB Forks - 29"
RRP
Code: 1011
DT Swiss F 535 One Boost MTB Forks - 29"
The F 535 ONE goes one step further with its two unique features. Plushport is a travel-dependent damping system driven by a bypass in the oil damper, which generates different levels of compression damping throughout travel. For example, in steep, technical terrain, the fork will stay high in its travel and give precise feedback from the track while smoothing the hardest hits. Coilpair enables small bump sensitivity and the initial low compression damping that allows the wheel to follow the ground aiming for maximum traction. The combination of both technologies delivers a new dimension of control during your All Mountain ride.
Plushport
The patented Plushport system generates the specific compression damping in every stroke, to get small bump sensitivity, mid-stroke support and bottom-out control. To do so, an opening in the low-speed compression circuit (the Plushport) is slowly closed by a floating piston when the fork goes into its travel, at the beginning of the stroke, it is fully opened to offer maximal traction.
Once the fork compresses, this port is slowly closed which leads to higher compression damping, enabling more support from the fork. For the last centemeters of travel, the piston keep the PLUSHPORT closed. This forces most of the oil which is still being displaced by the compression piston to move through the high-speed circuit, creating much higher compression damping force for a bottomless feel.
Coilpair
A small coil spring works with the air spring in the first 30 mm of travel. Due to the zero breakaway force of the coil spring, it compresses before the air spring piston even starts to move. The spring unit is connected to the lower unit of the fork via a spring connector. The spring connector basically consists of a coil spring and a guide bushing.
APT
The APT (Adaptable Progression Tune) system allows the rider to adjust the progression of the air spring curve by adding or removing volume spacers in the air chamber of the fork. This enables riders to adjust their spring curve to their riding style and the trails they are riding. The beauty of the system lies in the fact that the suppleness of the fork is unaffected, regardless of the setting chosen.
On-The-Fly Damping Adjustment
Compression damping is defined by the amount of oil which can flow in different channels. The smaller the channels, the higher the flow resistance and the higher the damping. INCONTROL damping provides on-the-fly damping adjustments offering the perfect compression tune for every riding situation by opening and closing different channels.
Specific Spring Curve
LINEAIR is a dual-air chamber system. Through the size of the air chambers and position of the bypass, the characteristic of the spring curve is specifically tuned to meet the needs of XC riders. A low breakaway force for traction, a linear but flatter mid-stroke section that allows you to float over root carpets and an end progression to eat the big hits.
Specification
- Wheel size: 29"
- Travel: 150mm
- Steerer: 1.5" Tapered
- Adjustment: Crown
- Axle: Boost (15x110mm)
- Extras: Bolt-On Mudguard Included
