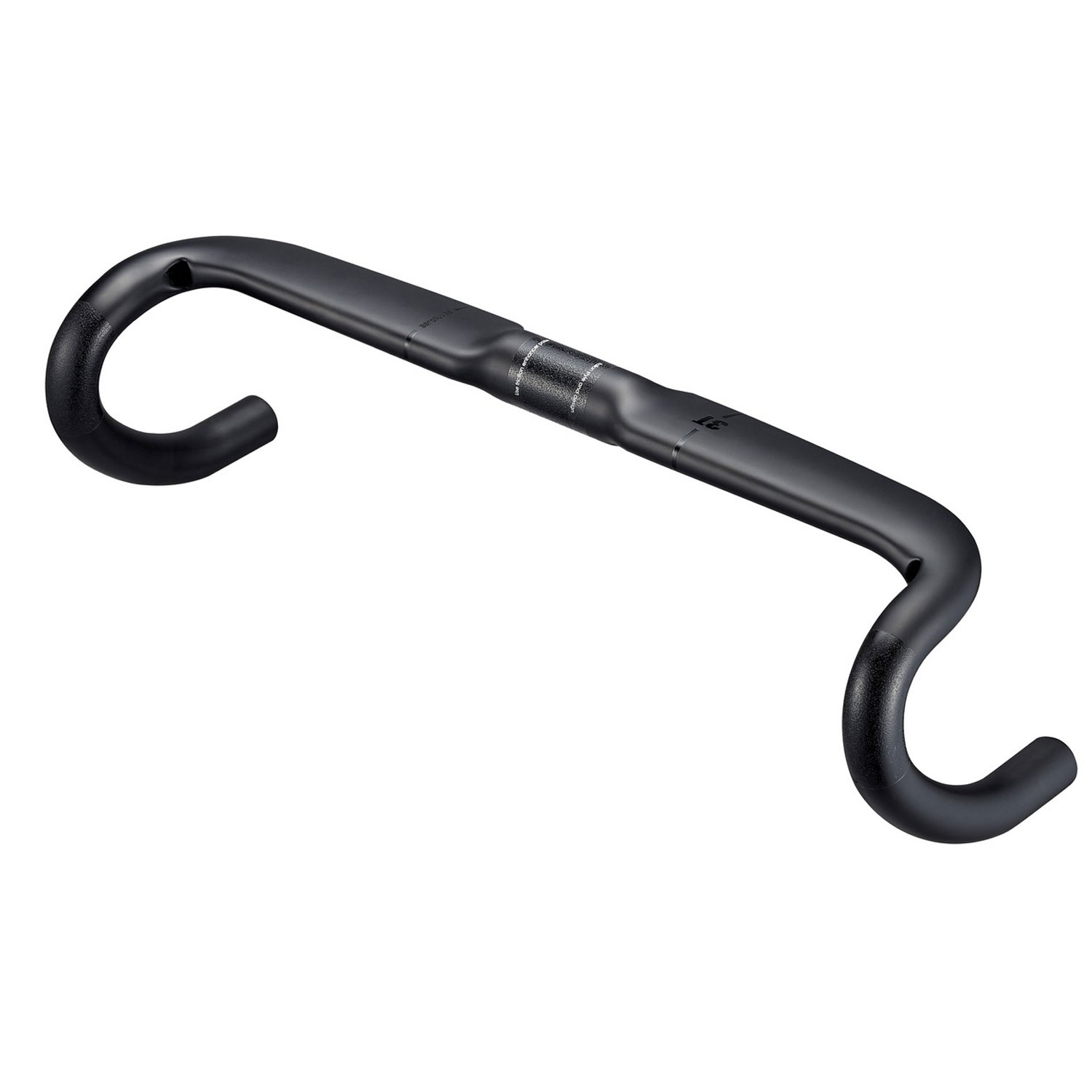

3T Aeroflux Integrale Ltd Carbon Road Handlebars
RRP
Code: 8002BAC
3T Aeroflux Integrale Ltd Carbon Road Handlebars
The Aeroflux is the ultimate combination of performance and comfort on the road. The newly developed wing shape creates less drag, while the internal cables exit the wing at an angle to ensure they lie tightly next to your stem. For ultimate comfort, the Aeroflux uses our most comfortable drop design, taken directly from the Superergo bars.
Features
- Material - Unidirectional carbon - ultralight layup
- Cable routing - Internal cable routing channels inside the bar
- Integrale compatibility - Yes
- Clamp diameter - 31.8mm
- Stem torque - 6Nm max. 4 bolt stem/ 8Nm max. 2 bolt stem
- Shift/brake lever torque - 8Nm maximum
- Clip-ons - Not compatible (this would require a longer round center section and increase aero drag)
- Di2 compatibility - Fully compatible, including with Di2 bar plug Junction A
- Finish -Stealth black
Measurements
| 38 | 40 | 42 | |
| W1 Hood-to-hood (mm) | 380 | 400 | 420 |
| W2 Drop-to-drop (mm) | 400 | 420 | 440 |
| R1 Reach (mm) | 89 | 89 | 89 |
| R2 Reach (mm) | 77 | 77 | 77 |
| D1 Drop (mm) | 119 | 119 | 119 |
| F1 Drop flare (degrees) | 7.0 | 7.0 | 7.0 |
| Weight LTD (+/-4%) (g) | 223 | 226 | 229 |
